Introducing the world’s first POE switch with UPS, offering a backup time of 90 minutes to ensure uninterrupted power supply for your critical surveillance infrastructure.

Model Code: Y1G-8P2G2F/B

Battery Type: Llithium-ion

Battery Capacity: 13200mah lithium-ion

Backup Time: 90 minutes

Camera Connectivity: Supports Upto 8 IP CAMERAS(PoE)

NVR Connectivity: Supports for 4 to 8 Channel NVR (Single-SATA)

PoE: Upto 300m when Extension Switch ON

Ports: 8+2 Port Fast Ethernet PoE Switch Realtek IC

  • Description
  • Product Features
  • Product Highlights
  • Additional Info

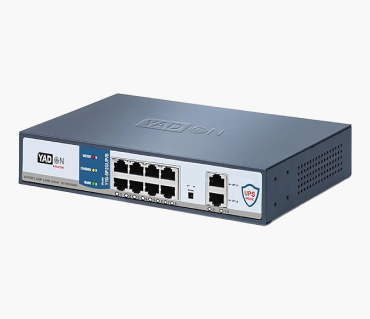

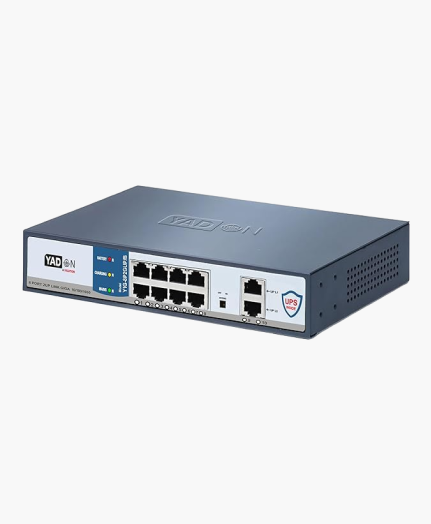

POE SWITCH WITH UPS (Y1G-8P2G2F/B)

Ensure uninterrupted power supply for your critical surveillance infrastructure with Yadon's innovative POE SWITCH WITH UPS. Designed to redefine the standards of reliability and performance in surveillance technology, this groundbreaking product combines the functionality of a Power over Ethernet (PoE) switch with the assurance of an Uninterruptible Power Supply (UPS).

Powered by advanced lithium-ion battery technology, the POE SWITCH WITH UPS offers a backup time of 90 minutes, ensuring continuous operation even during power outages. Its robust design extends connectivity up to 250 meters with CAT6 cables, providing flexibility in installation and deployment.

Compatible with all IP cameras, NVR systems, and WiFi routers, this versatile solution supports a wide range of surveillance applications. With 8 PoE ports and 2 GIGA & 2 SFP uplink ports, it offers seamless connectivity options for your surveillance network.

The POE SWITCH WITH UPS features a fan-less design for silent and efficient operation, making it suitable for both indoor and outdoor environments. Its 3-layered power protection system includes reverse power protection, overload protection, and 6KV lightning protection, ensuring the safety and longevity of your equipment.

Powered by lithium-ion battery cells and equipped with a battery management system, this product offers best-in-class battery protection against overcharge and overload. Additionally, it boasts 50,000 hours solid capacitors for reliable and uninterrupted power supply, making it a dependable choice for your surveillance infrastructure.

With a focus on efficiency and durability, the POE SWITCH WITH UPS features auto-negotiation ports, auto-detect MDI/MDIX, and 10/100/1000 Mbps data transfer rates. Its sleek and compact design, coupled with comprehensive protection features, makes it an ideal choice for enhancing the security of your premises.

Experience unmatched reliability and performance with Yadon's POE SWITCH WITH UPS, setting new standards in surveillance infrastructure. Choose Yadon for security solutions that never compromise on quality and reliability.

Top features of the product

  • Powered by a lithium-ion battery
  • Extend up to 250mtr cat6
  • SUPPORT ALL IP CAMS AND NVR
  • SUPPORT ALL WIFI ROUTERS
  • 10/100/1000 Mbps
  • auto-negotiation ports
  • Auto-detect MDI/MDIX
  • 50,000 hrs solid capacitors
  • 6KV LIGHTNING PROTECTION
  • 8 PoE port and 2 GIGA & 2 SFP UPLINK
  • Fan-less design

Three layered power protection

Reverse power protection

Over load Protection

6KV Lightning Protection

Powered By Lithium-ion & battery protection

Best in class battery cells with well tested and packed

Battery management system protects batteries on over charge and over load

Fearless

Extend up to 300 meters CAT6 cables

Fan-less design

Non-Stop Protection

50,000 Hours Solid capacitors

Backup time of 90 minutes

POE Switch Input

  • Input voltage range (DC) 14-15 v
  • Input current 5-8 Amp
  • Input connector 3.5mm DC power jack

POE Switch Output

  • PoE: Ports 1 to 8 UPLINK GIGA 9,10 SFP 11 & 12
  • MAX Power port 30W Each
  • POE Power budget includes NVR AND WIFI
  • ROUTER 120W

Output Spec

  • Output Voltage Range (Line Mode) (dc) 12.6 ± 5%
  • Output Voltage Range (Battery Mode) (dc) 12.35 ~ 12.50
  • Max Output Power (Watts) 105
  • Continuous Output Power (Line Mode) (Watts) 110
  • Continuous Output Power (Battery Mode) (Watts) 120
  • Overload Protection Internal Current Limiting
  • Efficiency (Line Mode, 100% Load) >83.5%
  • (Nominal Voltage at 25°C, Fully Charged)
  • Efficiency (Battery Mode, 100% Load) >91.9%
  • (Battery Voltage at 25°C, Fully Charged)

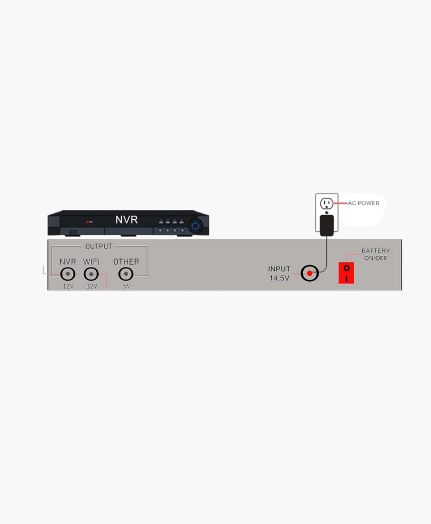

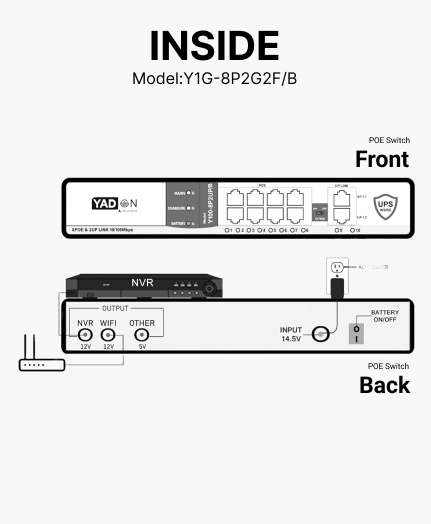

Output Connection

  • DC Female jack 1 (12.6v ± 5% for NVR)
  • DC Female jack 2 (12v ± 5% for WIFI)
  • DC Female jack 3 (5v ± 5% optional)

Adaptor Input

  • Input Voltage Range (ac) 130v ~ 260v
  • Input Frequency (Hz) 50 ~ 60
  • Input Connector 3pin
  • Power Cord Length (ft.) 3ft
